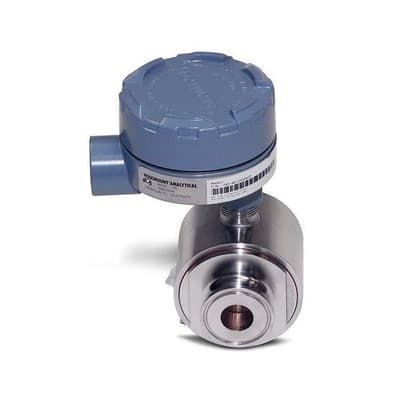

245 Sanitary Flow-Through Toroidal Conductivity Sensor

Brand: Rosemount
Request Information
Rosemount 245 Series sensors feature a noninvasive flow through design allowing for in-line installations without any obstruction to sample flow.

These sensors are ideal for use in viscous, abrasive, or fibrous liquids and are intended for use in the pharmaceutical, bio-pharmaceutical, and food and beverage industries.
Features
  • Robust measurements – insensitive to process flow rate and direction
  • Avoid accumulation of solids with no part of the sensor protruding into the sample flow
  • Available with 0.5, 1.0, 1.5 and 2 inch Tri Clamp connections
  • Liner and O-rings meet FDA and USP Class VI Requirements
  • Plugging resistant and suitable for liquids containing high levels of suspended solids
  • Simplified wiring with integral junction box
Rosemount 245 Series sensors feature a noninvasive flow through design allowing for in-line installations without any obstruction to sample flow.

These sensors are ideal for use in viscous, abrasive, or fibrous liquids and are intended for use in the pharmaceutical, bio-pharmaceutical, and food and beverage industries.
Features
  • Robust measurements – insensitive to process flow rate and direction
  • Avoid accumulation of solids with no part of the sensor protruding into the sample flow
  • Available with 0.5, 1.0, 1.5 and 2 inch Tri Clamp connections
  • Liner and O-rings meet FDA and USP Class VI Requirements
  • Plugging resistant and suitable for liquids containing high levels of suspended solids
  • Simplified wiring with integral junction box
Close

Specifications

Brand

Environmental Protection

  • NEMA 7 D

Flange Material

  • 316 Stainless Steel

Materials of Construction

  • Line: PEEK
  • Ring: 316 Stainless Steel

Maximum System Pressure

  • psig: 100 (kPa: 689, bar: 6.89) All Others
  • psig: 300 (bar: 20.7, kPa: 2,068) for 1/2” Sensor Only

O-Ring Material

  • EPDM

Operating Temperature

  • 0° to 121° C (32° to 250° F)
  • 0° to 130° C (32° to 266° F) in Steam for 45 minutes

Tri-Clamp Connection

  • 1” Tri-Clamp
  • 1/2” Tri-Clamp
  • 1-1/2” Tri-Clamp
  • 2” Tri-Clamp
