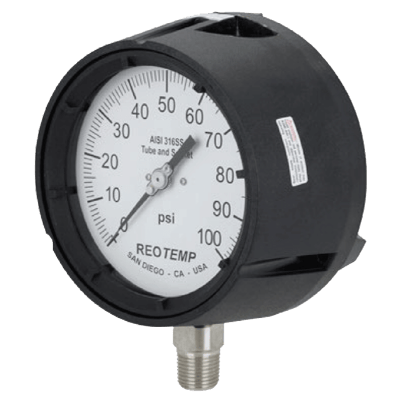

Series PT45 Industrial Process Gauge

Brand: REOTEMP Instruments Corporation
Request Information
REOTEMP’s Series PT45 process gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration; a very rugged gauge engineered for the process industries.

The solid front and blowout back provides a high degree of user safety.

Note: For highly-corrosive, high-temperature, or severe service applications a diaphragm seal is recommended.
Features
  • Safety Pattern Design
  • Solid Front/Blowout Back Safety Case
  • All Stainless Steel Internal Parts
  • Internal Overload and Underload Stops
  • Field Fillable Case
  • Micro-Adjustable Pointer with Floating Zero
  • ASME B40.100 Design
  • NACE MR-0175 and MR-0103 Compliant
REOTEMP’s Series PT45 process gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration; a very rugged gauge engineered for the process industries.

The solid front and blowout back provides a high degree of user safety.

Note: For highly-corrosive, high-temperature, or severe service applications a diaphragm seal is recommended.
Features
  • Safety Pattern Design
  • Solid Front/Blowout Back Safety Case
  • All Stainless Steel Internal Parts
  • Internal Overload and Underload Stops
  • Field Fillable Case
  • Micro-Adjustable Pointer with Floating Zero
  • ASME B40.100 Design
  • NACE MR-0175 and MR-0103 Compliant
Close
Close

Specifications

Brand

Accuracy

  • ± 0.5 %, ASME Grade 2A, (10,000 to 20,000, 1 % Upscale & 3 % Downscale)

Ambient Temperature Range

  • -40° to 65° C (-40° to 150° F)

Approvals & Certifications

  • ASME B40.100

Case Material

  • Thermoplastic (PBTB)
  • 316 Stainless Steel
  • Fiberglass Reinforced Plastic (Phenolic)

Dial Size

  • 4.5”

Display

  • White Aluminum Dial with Black Letters

Fill Material

  • Dry
  • Dry, Teflon Coated Movement
  • Glycerin
  • Glycerin & Water

Lens

  • Laminated Safety Glass
  • Plastic Lens
  • Tempered Safety Glass

Maximum System Pressure

  • Momentary: 130 % of Scale
  • Stable: 100 %

Mounting

  • Bottom Mounting
  • Lower Back Mounting
  • Lower Back/Front Flange

NACE & NIST

  • NACE

NPT Connection

  • 1/2” NPT Female
  • 1/4” NPT Female

Pressure Range

  • kPa: 0 to 34,473.8
  • -30” Hg 0 to 5,000 psi (bar: 0 to 344.7, kPa: 0 to 34,473)
  • bar: 0 to 344.7
  • Inches Hg: -30 to 0
  • psi: 0 to 5,000

Pressure Type

  • Gauge
  • Compound or Vacuum

Process Temperature

  • -40° to 121° C (-40° to 250° F)

UNF/UNC Connection

  • 9/16”-18 UNF Female (1/4” Female High Pressure)

Wetted Material

  • 316 Stainless Steel
  • Monel

Environmental Protection

  • NEMA 4X/IP65
