Diaphragm Seals

Brand: REOTEMP Instruments Corporation
Request Information

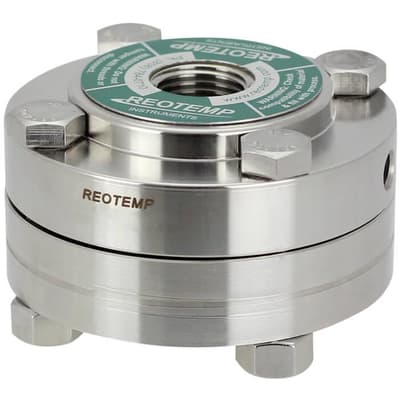

REOTEMP Diaphragm Seals (or Chemical Seals) use a flexible barrier, or diaphragm, to isolate a pressure sensor (gauge, switch, transmitter, or transducer) from adverse effects of the process fluid.

Diaphragm seals are useful to:
  • Protect the sensor from the process media (corrosive, abrasive, viscous, or crystallizing media)
  • Protect the process from the sensor (sanitary process requiring clean-out, or high purity media)
A diaphragm seal, when properly mounted to its sensor and filled, will accurately transmit process pressure to the instrument.

Pressure exerted on the flexible diaphragm is transmitted hydraulically to the instrument through the fill fluid, which fills the void between the diaphragm and the instrument, (including the bourdon tube, in the case of a pressure gauge).
REOTEMP Diaphragm Seals (or Chemical Seals) use a flexible barrier, or diaphragm, to isolate a pressure sensor (gauge, switch, transmitter, or transducer) from adverse effects of the process fluid.

Diaphragm seals are useful to:
  • Protect the sensor from the process media (corrosive, abrasive, viscous, or crystallizing media)
  • Protect the process from the sensor (sanitary process requiring clean-out, or high purity media)
A diaphragm seal, when properly mounted to its sensor and filled, will accurately transmit process pressure to the instrument.

Pressure exerted on the flexible diaphragm is transmitted hydraulically to the instrument through the fill fluid, which fills the void between the diaphragm and the instrument, (including the bourdon tube, in the case of a pressure gauge).
Close

Specifications

Brand

Applications

  • Chemical Compatibility
  • Corrosive Environments
  • Fluidic Systems
  • Pressure Monitoring
  • Process Applications
  • Remote Telemetry
  • Temperature
  • Vacuum

Diaphragm Material

  • 304 Stainless Steel
  • 316 Stainless Steel, Teflon Coated
  • Carpenter 20
  • Gold-Plated
  • Hastelloy B
  • Hastelloy C
  • Inconel
  • Monel
  • Nickel
  • Tantalum
  • Teflon
  • Titanium
  • Viton
  • Welded 316 Stainless Steel

Enclosure, Body Material

  • 304 Stainless Steel - Lower Housing
  • 304 Stainless Steel - Upper Housing
  • 316 Stainless Steel - Lower Housing
  • 316 Stainless Steel - Upper Housing
  • Brass - Lower Housing
  • Carbon Steel - Upper Housing
  • Carpenter 20 - Lower Housing
  • CPVC - Lower Housing
  • Hastelloy B - Lower Housing
  • Hastelloy C-276 - Lower Housing
  • Inconel - Lower Housing
  • Kynar - Lower Housing
  • Monel - Lower Housing
  • Nickel - Lower Housing
  • Polypropylene - Lower Housing
  • PVC - Lower Housing
  • Steel - Lower Housing
  • Tantalum - Lower Housing
  • Tantalum Lined - Lower Housing
  • Teflon - Lower Housing
  • Teflon Lined - Lower Housing
  • Titanium - Lower Housing

Fill Material

  • DC 200 - Silicone Oil
  • DC 704 - Silicone Oil
  • DC 710 - Silicone Oil
  • Glycerin
  • Halocarbon
  • Neobee M20

Maximum System Pressure

  • psi: 5,000 (kPa: 35,000, bar: 350)

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1/4” NPT Female
  • 3/4” NPT Female

Temperature Range

  • Maximum
