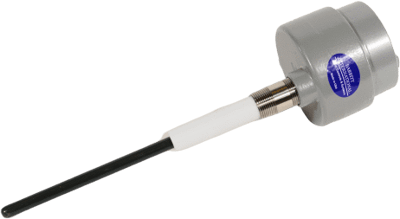

LS7000/2 Dual-Point Level Sensor

Brand: Babbitt International Inc
Request Information
The LS7000/2 dual-point RF level switch uses the proprietary radio frequency (RF) balanced impedance bridge.

It is specifically designed to automatically fill or empty a tank, vessel or sump.

The high and low set points are adjustable over the entire length of the probe.

This unit is designed for use in homogeneous liquids.
Features
  • Field selectable Auto Fill or  Auto Empty
  • Solid state, no moving parts
  • Simple installation and calibration
  • Explosion proof housing standard
  • On-board fuse protection
  • User Programmable time delay
  • Modular electronics easily replaced
The LS7000/2 dual-point RF level switch uses the proprietary radio frequency (RF) balanced impedance bridge.

It is specifically designed to automatically fill or empty a tank, vessel or sump.

The high and low set points are adjustable over the entire length of the probe.

This unit is designed for use in homogeneous liquids.
Features
  • Field selectable Auto Fill or  Auto Empty
  • Solid state, no moving parts
  • Simple installation and calibration
  • Explosion proof housing standard
  • On-board fuse protection
  • User Programmable time delay
  • Modular electronics easily replaced
Close
Close

Specifications

Brand

Power

  • 115 Vac (± 15 %) 50/60 Hz, 2 Watts Standard
  • 12 Vdc, 24 Vdc, 230 Vac Optional

Output

  • 5 A Resistive at 125 Vac, 230 Vac, 30 Vdc
  • 2 Form C Contact DPDT Relay

On Board Fuse

  • 0.5 A

RF Frequency

  • 1.3 MHz

Pressure

  • 1,500 psi @ 75° F - 1” NPT Standard
  • 300 psi @ 75° F - 3/4” NPT Optional

Temperature Range

  • Teflon Sleeve: -30° to 250° F
  • Probe: -30° to 340° F - HALAR

Enclosure

  • Cast Aluminum, Explosion Proof - Class I, Groups C & D; Class II, Groups E, F & G
Close

Applications

  • Auto Fill/Auto Empty
  • Pump Control
Liquids
  • Water
  • Acids/Caustics
  • Fuels/Oils
  • Solvents
