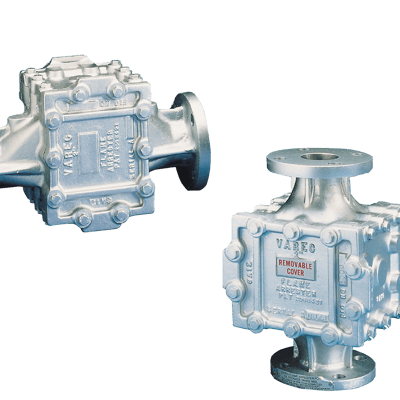

Varec Series 5000/5010 Flame Arresters

Brand: Varec
Request Information
Group ‘D’ end-of-line flame arresters with a unique extensible bank frame designed to stop the propagation of flame from external sources.
Features
  • Models available for vertical or horizontal configurations.
  • Heavy wall cast housing in 356 T6 aluminum, carbon steel or 316 stainless steel.
  • Net free area through banks three to four times the unit pipe size, resulting in increased flow capacity with minimal pressure drop.
  • Bank’s large surface area improves heat dissipation.
  • Removable cover plate and extensible bank assembly for easy inspection, cleaning or replacement.
  • Unitized housing does not require support for proper bank alignment during maintenance.
  • ‘Off-set’ housing design ensures flow capacity unaffected by condensate accumulation, even when installed in horizontal piping.
  • 5010 Series ½” NPT drain plug at the low point is located conveniently for routine draining
  • UL approved.
  • A Varec drip trap should be specified for field installation at this connection to provide for safe removal of condensate.
Group ‘D’ end-of-line flame arresters with a unique extensible bank frame designed to stop the propagation of flame from external sources.
Features
  • Models available for vertical or horizontal configurations.
  • Heavy wall cast housing in 356 T6 aluminum, carbon steel or 316 stainless steel.
  • Net free area through banks three to four times the unit pipe size, resulting in increased flow capacity with minimal pressure drop.
  • Bank’s large surface area improves heat dissipation.
  • Removable cover plate and extensible bank assembly for easy inspection, cleaning or replacement.
  • Unitized housing does not require support for proper bank alignment during maintenance.
  • ‘Off-set’ housing design ensures flow capacity unaffected by condensate accumulation, even when installed in horizontal piping.
  • 5010 Series ½” NPT drain plug at the low point is located conveniently for routine draining
  • UL approved.
  • A Varec drip trap should be specified for field installation at this connection to provide for safe removal of condensate.
Close
Close

Specifications

Brand

Sizes

  • 2", 3", 4", 6", 8", 10" and 12"

Connections

  • Aluminum drilled to ANSI Class 150 dimensions, flat face flange
  • Carbon Steel and 316 Stainless Steel drilled to ANSI Class 150 dimensions, raised face flange
  • Special drilling of flange connections to DIN, JPI or JIS standards available upon request
  • Consult your local sales representative for further details

Pressure Rating

  • Leak proof to 10 psi (69.0 kPa), standard
  • Higher ratings available: consult sales

Pressure Drop

  • Should not exceed 1 psi (6.9 kPa)

Location

  • Within 15 feet (4.6 m) upstream of flame source

Configuration

  • Net free Area: Three to four times the corresponding size standard pipe
  • Bank Assembly: Extensible Aluminum bank frame with corrugated rectangular shaped bank sheets; Fixed 316 Stainless Steel bank frame
  • Provision for Draining: 5000 Series self draining; 5010 Series includes ½" NPT connection at low point

Housing Materials

  • 356 - T6 low Copper Aluminum - Standard
  • Carbon Steel (ASTM A216 grade WCB) - optional
  • 316 Stainless Steel - optional

Bank Assembly Material

  • Low Copper Aluminum extensible frame with Aluminum bank sheets - standard
  • Low Copper Aluminum extensible frame with 316 Stainless Steel bank sheets - optional
  • All 316 Stainless Steel fixed frame with 316 stainless steel bank sheets - optional (available with Carbon Steel or 316 Stainless Steel housing only)

Approvals

  • 5000 Series UL (Underwriters Laboratories) listed in all aluminum construction with extensible bank assembly in 2", 3", 4", 6" and 10" sizes
  • 5010 Series UL listed in all aluminum construction as above in 2", 3" and 4" sizes
