Images are representations only.

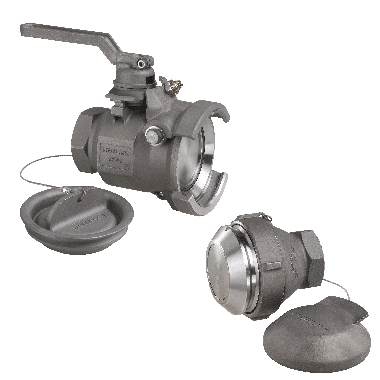

Drylok™ Dry Disconnect Coupler and Adaptor

Brand: OPW Engineered Systems
Request Information
Drylok® is designed to safely transfer hazardous, corrosive and volatile liquids such as acids, solvents and petrochemicals.

Rugged design, excellent flow with little product loss makes the Drylok ideal for the most challenging loading-rack environments.

The Drylok has become the coupler of choice in many of the most critical loading applications.
Features
  • Very Low Product Loss. Flat Poppet Face Design Ensures Minimal Loss at Disconnect.
  • Fully Interlocked. Double Safety System. Cannot be Opened Unless Connected to Mating Fitting.
  • Optimal Flow. Less Obstructions Provide Better Flow Characteristics in High-pressure or Viscosity Applications.
  • Rugged. Designed to Withstand Everyday Use/Abuse at the Loading Rack.
  • Ease of Maintenance. Standard O-Ring Seals Make Maintenance Simple, Easy, and Cost-effective.
  • 150 psi - 10 bar Pressure Rating
  • 1", 2" and 3" Sizes
  • Stainless-steel, Alloy 20 Or Hastelloy C Construction
  • AAR Approved
  • CRN Approved
  • Can be Coupled in Any Orientation - 360°
Drylok® is designed to safely transfer hazardous, corrosive and volatile liquids such as acids, solvents and petrochemicals.

Rugged design, excellent flow with little product loss makes the Drylok ideal for the most challenging loading-rack environments.

The Drylok has become the coupler of choice in many of the most critical loading applications.
Features
  • Very Low Product Loss. Flat Poppet Face Design Ensures Minimal Loss at Disconnect.
  • Fully Interlocked. Double Safety System. Cannot be Opened Unless Connected to Mating Fitting.
  • Optimal Flow. Less Obstructions Provide Better Flow Characteristics in High-pressure or Viscosity Applications.
  • Rugged. Designed to Withstand Everyday Use/Abuse at the Loading Rack.
  • Ease of Maintenance. Standard O-Ring Seals Make Maintenance Simple, Easy, and Cost-effective.
  • 150 psi - 10 bar Pressure Rating
  • 1", 2" and 3" Sizes
  • Stainless-steel, Alloy 20 Or Hastelloy C Construction
  • AAR Approved
  • CRN Approved
  • Can be Coupled in Any Orientation - 360°
Close
Close

Specifications

Brand

Type

  • Adaptor
  • Coupler

O-Ring Seal

  • Fluorocarbon-B
  • Fluorocarbon-E
  • EPDM
  • PTFE Encapsulated Fluorocarbon
  • Buna-N
  • PTFE-Encapsulated Silicone
  • Fluorocarbon
  • Kalres (1050LF)
  • Kalrez® (4079)
  • Kalrez® (6375)

Construction Material

  • 316 Stainless Steel
  • Alloy 20®
  • Hastelloy C

Size

  • 1-3 in

Style

  • ANSI Flange 150 lbs
  • Female BSPT
  • Cutaway
  • Female NPT
  • Sanitary Triclamp
  • ANSI Flange 300 lbs
  • Butt Weld
  • Parking Adaptor
  • Socket Weld

AAR Number

  • E129503 - 5670 Series Drylok Adapter - Flanged

CRN Numbers

  • 0H09640.21 -  British Columbia
  • 0H09640.2 - Alberta
  • 0H09640.23 - Saskatchewan
  • 0H09640.24 - Manitoba
  • 0H09640.25 - Ontario
  • 0H09640.26 - Quebec
  • 0H09640.27 - New Brunswick
  • 0H09640.28 - Nova Scotia
  • 0H09640.29 - Prince Edward Island
  • 0H09640.20 -  Newfoundland
  • 0H09640.2N - Nunavut
  • 0H09640.2T -  Northwest Territories
  • 0H09640.2Y - Yukon Territory
