Description

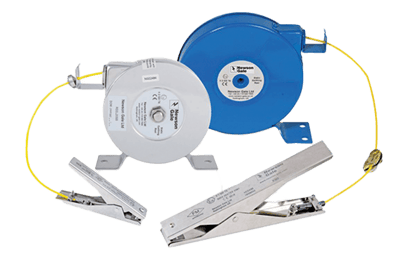

Heavy Duty grounding clamps with retracting cable reels are an alternative solution to using retractable Cen-Stat spiral cable.
Normally specified for locations where there is a preference for ensuring process operators stow grounding clamps correctly for good “housekeeping” purposes when the clamps are not in use.
Newson Gale’s “R-series” of static grounding reels offer Hytrel cable housed on automatically retractable cable reel.
Cen-Stat cables are based upon Hytrel that combines the flexibility of rubber with the strength and process flexibility of thermoplastics.
Cables made from Hytrel are mechanically resilient, have a wide working temperature and are resistant to a wide range of chemicals, as well as strong and durable.
- Alternative solution to retractable Cen-Stat spiral cable
- Ensures operators stow clamps away after use
- Self-retracting or hand operated reels
- Hytrel cable housed in automatically retractable cable reel
- Ideal for grounding and bonding metal objects from small cans to large drums
Specifications
Specifications
Brand
Reel Dimensions
- 7.5” x 6.1” x 2.0” (190 mm x 155 mm x 51 mm) approx.
Cable Length
- 20 ft (6.1 m), 30 ft (9.1 m), 50 ft (15.2 m) with Hytrel coating
Cable Supplied
- Multi-stranded galvanized steel with hi-viz Hytrel yellow coating
Cable Size
- Conductor cross sectional area - 3/32” (2.3 mm) galvanized braided cable conductor, 1/8” (3.2 mm) with Hytrel coating
Reel Construction
- Latchable spring mounted cable drum mounted in powder coated steel housing
Approvals & Certifications
- ATEX II 2 G T6 (Assessed to EN 13463-1 : 2001) II 2 D
- FM approved (R20 & R30)
