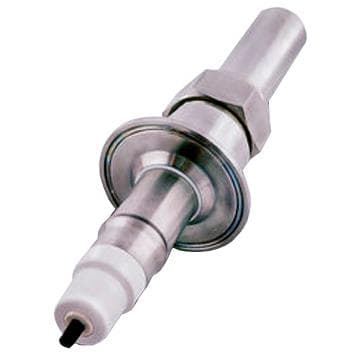

TF396 Non-Glass ISFET pH Sensor

Brand: Rosemount
Request Information
The Rosemount TF396 sensor features an ion-selective field effect transistor (ISFET) pH electrode that provides a stable pH measurement. Its rate of response can be ten times faster than glass electrodes, enabling better process control.

Its short response time and increased stability at low temperatures make it suitable for use in cold processes like brine or water for cooling.

Aging effects caused by temperature fluctuations or large changes of process pH are greatly reduced, providing longer intervals between calibration and maintenance of the sensor.

The sensor's non-glass design can be used in many applications that restrict or prohibit pH glass electrodes due to the risk of broken glass getting into the process.
Features
  • REDUCED DRIFT with TUpH reference technology
  • SUITABLE FOR USE IN COLD TEMPERATURES with continued rapid response and accuracy
  • REDUCED CALIBRATION FREQUENCY due to increased sensor stability
  • MINIMUM SENSOR MAINTAINANCE with TUpH reference technology which ensures continued reference performance when the sensor becomes coated
  • VERSATILE MOUNTING OPTIONS with 1" Male NPT front and rear facing threads or 2" Tri-Clamp connection
The Rosemount TF396 sensor features an ion-selective field effect transistor (ISFET) pH electrode that provides a stable pH measurement. Its rate of response can be ten times faster than glass electrodes, enabling better process control.

Its short response time and increased stability at low temperatures make it suitable for use in cold processes like brine or water for cooling.

Aging effects caused by temperature fluctuations or large changes of process pH are greatly reduced, providing longer intervals between calibration and maintenance of the sensor.

The sensor's non-glass design can be used in many applications that restrict or prohibit pH glass electrodes due to the risk of broken glass getting into the process.
Features
  • REDUCED DRIFT with TUpH reference technology
  • SUITABLE FOR USE IN COLD TEMPERATURES with continued rapid response and accuracy
  • REDUCED CALIBRATION FREQUENCY due to increased sensor stability
  • MINIMUM SENSOR MAINTAINANCE with TUpH reference technology which ensures continued reference performance when the sensor becomes coated
  • VERSATILE MOUNTING OPTIONS with 1" Male NPT front and rear facing threads or 2" Tri-Clamp connection
Close

Specifications

Brand

Approvals & Certifications

  • DNV

Cable Length

  • 20 feet (6 metres)
  • 50 feet (15 metres)

Conductivity

  • Minimum 100 µS/cm

Enclosure, Body Material

  • 316 Stainless Steel
  • Polypropylene

Measuring Range

  • 2 to 12 pH

NPT Connection

  • 1” NPT Male

Pressure Range

  • psig: -10 to 100 (kPa: -68.95 to 689.5, bar: -0.69 to 6.90) (32 to 790 kPa [abs]) at 50° C

Repeatability

  • ± 0.05 pH

Temperature Range

  • 0° to 100° C (32° to 212° F) @ 50 psig

Tri-Clamp Connection

  • 2” Tri-Clamp

Wetted Materials

  • 316 Stainless Steel
  • EPDM
  • Polypropylene
  • Ryton
  • Silicone
  • Titanium
