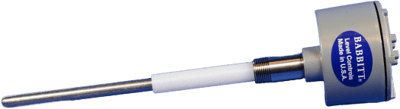

LS2100 Loop-Powered Level Sensor

Brand: Babbitt International Inc
Request Information
The LS2100 2-Wire Loop Power Level Switch can measure virtually any liquid or dry material making it an excellent choice for point level detection in a variety of industrial applications.

The two wire design provides a current output and is perfect for use with PLC’s and DCS systems.

The LS2100 level switch has no moving parts to wear out, jam or break, so there is no need for regular maintenance or cleaning.

Calibration is a snap, one piece construction makes installation quick and easy.
Features
  • Solid state, no moving parts
  • Simple installation and calibration
  • Explosion proof housing standard
  • Fail safe electronics
The LS2100 2-Wire Loop Power Level Switch can measure virtually any liquid or dry material making it an excellent choice for point level detection in a variety of industrial applications.

The two wire design provides a current output and is perfect for use with PLC’s and DCS systems.

The LS2100 level switch has no moving parts to wear out, jam or break, so there is no need for regular maintenance or cleaning.

Calibration is a snap, one piece construction makes installation quick and easy.
Features
  • Solid state, no moving parts
  • Simple installation and calibration
  • Explosion proof housing standard
  • Fail safe electronics
Close
Close

Specifications

Brand

Power

  • Loop Powered 16-32 Vdc

Output

  • Normal: 8 mA
  • Alarm: 16 mA
  • Reversable

RF Frequency

  • 1.3 MHz

Temperature

  • Electronics -30° C to 180° F
  • Probe: -30° to 400° F

Pressure

  • 300 psi @ 75F

Enclosure

  • Cast Aluminum, Explosion Proof - Class I, Groups C & D, Class II, Groups E, F & G
Close

Applications

  • High or Low Level Alarms
  • Sump Control
  • Oil/Water Interface Detection
  • Dry Pump Protection
Liquid & Dry Materials
  • Water/Wastewater
  • Acids/Caustics
  • Chemicals/Oils
  • Slurries
  • Flour/Grains
  • Powder/Plastics
  • Sand/Cement
