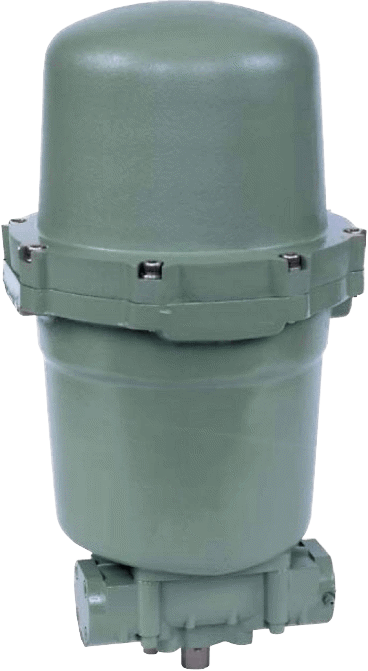

Sure 49 Spring-Return Electric Actuator

Brand: RCS Actuators
Request Information
The Industry Leader in Spring-Return Actuators for Critical Isolation Service.

When quarter-turn and modulating emergency shutdown or shutoff capability is required.

Available in both regular and high-temp configurations for your most challenging application.
The Industry Leader in Spring-Return Actuators for Critical Isolation Service.

When quarter-turn and modulating emergency shutdown or shutoff capability is required.

Available in both regular and high-temp configurations for your most challenging application.
Close

Specifications

Brand

Temperature Range

  • Standard: -40° F to +150° F
  • Optional: -60° F to +150° F

Voltage

  • 115 Vac, 1-Phase, 50/60 Hz
  • 230 Vac, 1-Phase, 50/60 Hz
  • 24 Vac
  • 12 and 24 Vdc

Torque Range

  • 30- pound inches spring end

Speed Range

  • 5, 15 & 30 seconds for 90° revolution

Spring

  • Helical torsion spring, spring steel, XYLAN® coated
Close

Applications

For on/off and modulating control of:
  • Part turn ball, butterfly, plug valves or rotary dampers when emergency shutdown or shutoff capability is required in the event of a loss of power.
