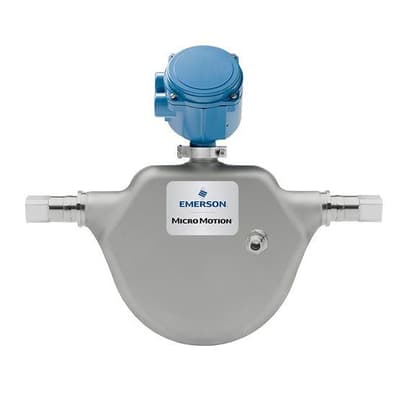

Micro Motion High Pressure Coriolis Flow Meter

Brand: Micro Motion - by Emerson
Request Information
The ideal solution for challenging high-pressure processes, the High-Pressure Coriolis Flow Meter works well in applications such as chemical injection on offshore platforms.

Accurate, repeatable measurement ensures precision downhole chemical delivery.
Features
  • Realize superior performance in high-pressure applications.
  • Use one device for reliable and repeatable mass flow, volume flow, density, concentration and temperature measurement.
  • Get the best real-world Coriolis performance at operating pressures up to 15,000 psig (1034 barg).
  • Minimize maintenance and boost long-term reliability with no moving parts to wear or replace.
  • Maximize uptime using Smart Meter Verification to check system integrity without need to pull meter out of service.
  • Accommodate any installation requirement with available two-wire, direct-connect (no transmitter needed), stainless steel and 5700 transmitters.
  • Dramatically cut operating expenses by reducing over-injection of high-value chemicals.
The ideal solution for challenging high-pressure processes, the High-Pressure Coriolis Flow Meter works well in applications such as chemical injection on offshore platforms.

Accurate, repeatable measurement ensures precision downhole chemical delivery.
Features
  • Realize superior performance in high-pressure applications.
  • Use one device for reliable and repeatable mass flow, volume flow, density, concentration and temperature measurement.
  • Get the best real-world Coriolis performance at operating pressures up to 15,000 psig (1034 barg).
  • Minimize maintenance and boost long-term reliability with no moving parts to wear or replace.
  • Maximize uptime using Smart Meter Verification to check system integrity without need to pull meter out of service.
  • Accommodate any installation requirement with available two-wire, direct-connect (no transmitter needed), stainless steel and 5700 transmitters.
  • Dramatically cut operating expenses by reducing over-injection of high-value chemicals.
Close

Specifications

Brand

Flow Rate

  • 25-240 kg/hour (55 - 529 lbs/hr)

Liquid Density Accuracy

  • ± 0.005 G/cc at Standard Conditions

Liquid Mass Flow Accuracy

  • ± 0.20 % at Standard (Reference) Conditions

Liquid Mass Flow Rate Repeatability

  • ± 0.1 % at Standard Conditions

Pressure Range

  • 0 to 15,000 psig (0 to 1034 barg)

Temperature Range

  • ± 1 Deg C ± 0.5 % of Reading at Standard Conditions
