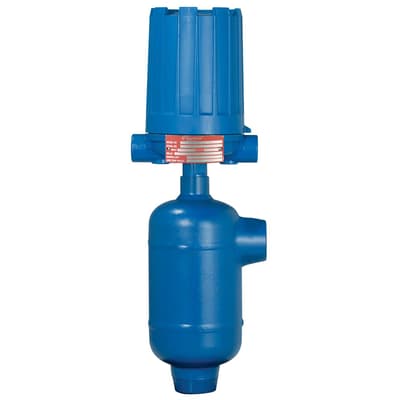

Series B73 & 75 Sealed External Caged Liquid Level Switch

Brand: Magnetrol
Request Information
Series B73 and Series 75 external cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded, socket weld or flanged pipe connections.

These float-actuated controls have proven their reliability in process control for decades.
Features
  • Carbon steel or stainless steel welded float chamber.
  • Service pressures up to 2,240 psig (154 bar).
  • Process temperatures up to 538° C (1,000° F).
  • Specific gravity ratings as low as 0.32.
  • Available switch styles including dry contact, hermetically sealed and pneumatic.
  • Single or multiple switch mechanisms available.
  • Optional high temperature insulation available.
Series B73 and Series 75 external cage type level switches are completely self-contained units designed for side mounting to a tank or vessel with threaded, socket weld or flanged pipe connections.

These float-actuated controls have proven their reliability in process control for decades.
Features
  • Carbon steel or stainless steel welded float chamber.
  • Service pressures up to 2,240 psig (154 bar).
  • Process temperatures up to 538° C (1,000° F).
  • Specific gravity ratings as low as 0.32.
  • Available switch styles including dry contact, hermetically sealed and pneumatic.
  • Single or multiple switch mechanisms available.
  • Optional high temperature insulation available.
