140 Retractable Conductivity Sensor

Brand: Rosemount
Request Information

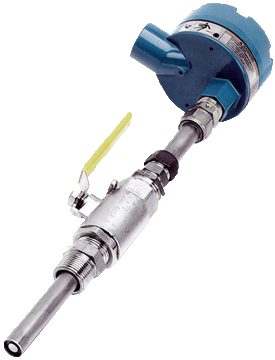

The Rosemount 140 contacting conductivity sensor features a retractable design that allows the sensor to be removed from a pipe or vessel without the need to shut down the process.

The sensor's rugged design allows it to withstand high temperature and pressure conditions up to 200° C and 100 psig.
Features
  • Retractable design allows sensor to be removed from a pipe or vessel without shutting down the process.
  • All installation hardware included
  • 316 Stainless steel and Peek construction allow operation to 392° F (200° C)
  • Available with 0.1 and 1.0/cm cell constants
The Rosemount 140 contacting conductivity sensor features a retractable design that allows the sensor to be removed from a pipe or vessel without the need to shut down the process.

The sensor's rugged design allows it to withstand high temperature and pressure conditions up to 200° C and 100 psig.
Features
  • Retractable design allows sensor to be removed from a pipe or vessel without shutting down the process.
  • All installation hardware included
  • 316 Stainless steel and Peek construction allow operation to 392° F (200° C)
  • Available with 0.1 and 1.0/cm cell constants
Close

Specifications

Brand

Conductivity

  • 0.1/cm
  • 1.0/cm

Enclosure, Body Material

  • 316 Stainless Steel

Materials of Construction

  • Electrode: 316 Stainless Steel
  • Insulator: PEEK
  • Junction Box: Aluminum

Maximum System Pressure

  • psig: 250 (kPa: 1,725, bar: 17.25)

NPT Connection

  • 1” NPT Male

O-Ring Material

  • Viton

Temperature Range

  • 0° to 200° C (32° to 390° F)
