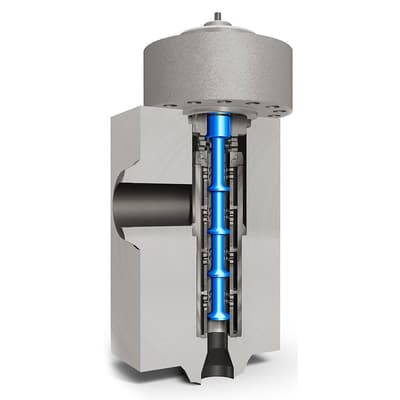

CAV4 Control Valve

Brand: Fisher
Request Information
Fisher CAV4 valves are designed for clean, cavitating services where the pressure drop is above 207 bar (3000 psi).

The Cavitrol™ IV trim in this valve is designed to have an expanding flow area. Each of the trim stages has a successively larger flow area.

The result is a very efficient operation because more than 90 percent of the overall pressure drop is taken in the initial stages, where there is little danger of cavity formation which could result in cavitation.
Features
  • Designed to prevent cavitation.
  • Has a pressure drop limit of 552 bar (8000 psi).
  • The protected seat design separates the shutoff function from the throttling function to protect seating surfaces from throttling wear.
  • Hardened trim materials provide excellent wear resistance, resulting in long trim life.
  • Soft metal-to-metal seat provides tight shutoff without the need for periodic lapping.
  • Cage-type trim allows removal and inspection of parts without taking the valve body out of the pipeline.
Fisher CAV4 valves are designed for clean, cavitating services where the pressure drop is above 207 bar (3000 psi).

The Cavitrol™ IV trim in this valve is designed to have an expanding flow area. Each of the trim stages has a successively larger flow area.

The result is a very efficient operation because more than 90 percent of the overall pressure drop is taken in the initial stages, where there is little danger of cavity formation which could result in cavitation.
Features
  • Designed to prevent cavitation.
  • Has a pressure drop limit of 552 bar (8000 psi).
  • The protected seat design separates the shutoff function from the throttling function to protect seating surfaces from throttling wear.
  • Hardened trim materials provide excellent wear resistance, resulting in long trim life.
  • Soft metal-to-metal seat provides tight shutoff without the need for periodic lapping.
  • Cage-type trim allows removal and inspection of parts without taking the valve body out of the pipeline.
Close

Specifications

Brand

Approvals & Certifications

  • ATEX, CUTR, PED, CRN, NACE

Critical Service

  • Cavitation, Dirty Service

Flow Characteristics

  • Linear, Quick Opening, Characterization

Material

  • Carbon Steel, Alloy

Operating Temperature

  • Standard Temperature

Other Configurations

  • Contact Your Local Emerson Business Partner or Sales Office to Learn About Additional Specifications or Options for This Product.

Pressure Class

  • ASME

Process Connection Type

  • Flanged, Butt Weld

Shutoff Class

  • Class IV (FCI 70-2), Class VI (FCI 70-2)

Valve Size

  • NPS 2, NPS 3, NPS 4, NPS 6

Valve Size Standard

  • NPS
